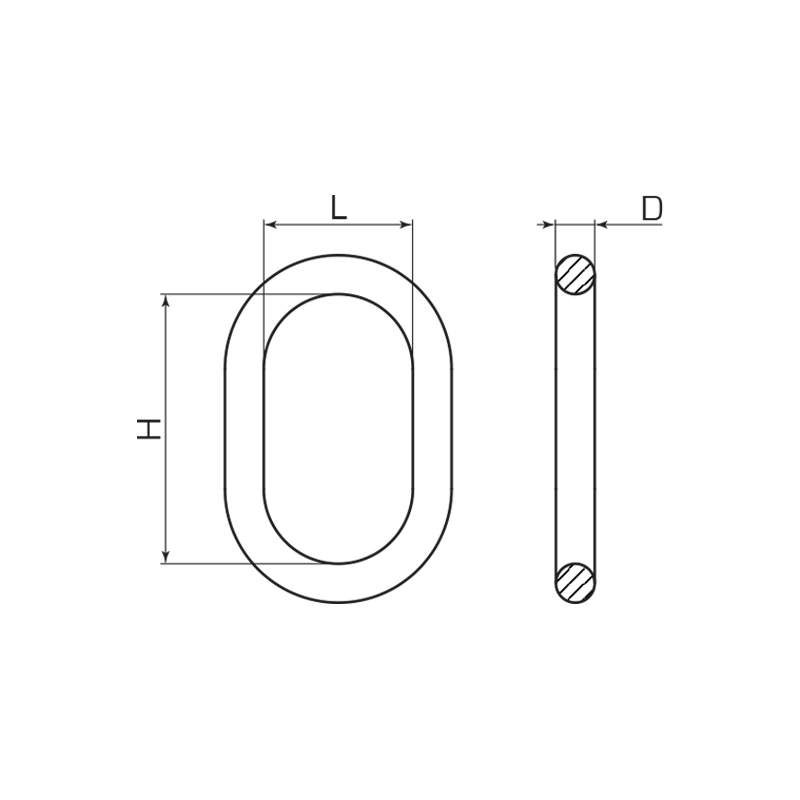

R0733 - CMX - Oval Aufhängeringe, Grad 100
Datenblatt
Weitere Informationen
WLL (t)
Kette (mm)
D
H
L
| Menge | Code | WLL (t) | Kette (mm) | D | H | L | |
|---|---|---|---|---|---|---|---|
|
| R0733-20-0001 | 1,9 | 6 | 13 | 110 | 60 | |
|
| R0733-20-0002 | 2,5 | 7 | 16 | 110 | 60 | |
|
| R0733-20-0003 | 4 | 8 | 18 | 135 | 75 | |
|
| R0733-20-0004 | 6,7 | 10 | 22 | 160 | 90 | |
|
| R0733-20-0005 | 10 | 13 | 26 | 180 | 100 | |
|
| R0733-20-0006 | 12,5 | 16 | 32 | 200 | 110 | |
|
| R0733-20-0007 | 16 | 18 | 36 | 260 | 140 | |
|
| R0733-20-0008 | 19 | 20 | 40 | 300 | 160 | |
|
| R0733-20-0009 | 26,5 | 22 | 45 | 340 | 180 | |
|
| R0733-20-0010 | 40 | 26 | 51 | 350 | 190 | |
|
| R0733-20-0011 | 50 | 32 | 57 | 400 | 200 |
