R0631 - S110 - Toothed support
Datenblatt
Weitere Informationen
| Werkstoff | Acciaio da bonifica verniciato |
| Hinweis | Altezza gradino: Verticale - 4,65 mm; Orizzontale - 2,3 mm |

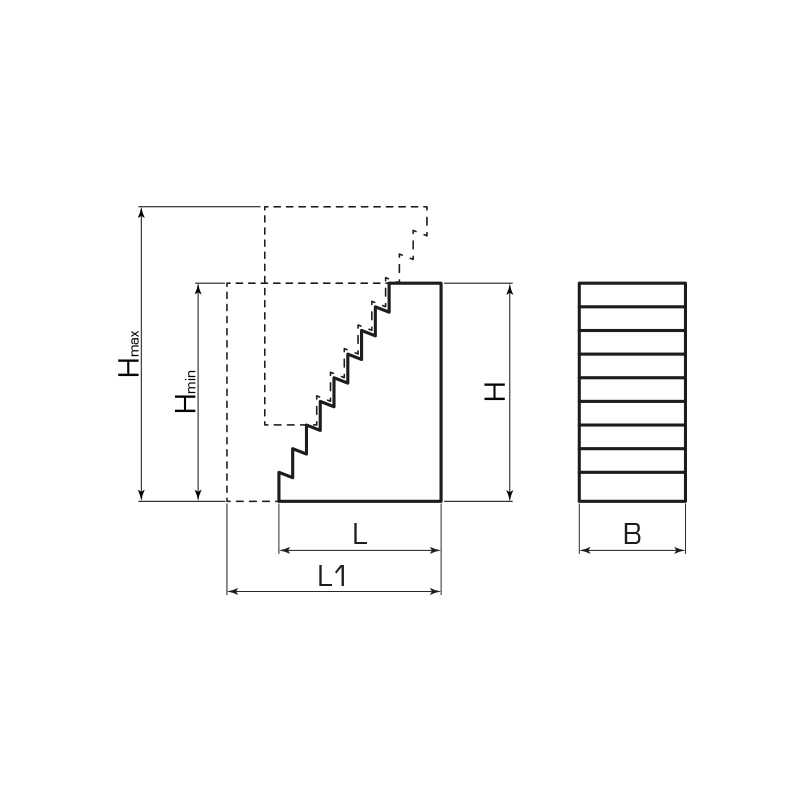

B
L
H
L1
H min
H max
| Menge | Code | B | L | H | L1 | H min | H max | |
|---|---|---|---|---|---|---|---|---|
|
| R0631-11-0001 | 30 | 22 | 31,5 | 38 | 31,5 | 53 | |
|
| R0631-11-0002 | 30 | 36,5 | 64,5 | 70 | 64,5 | 105 | |
|
| R0631-11-0003 | 30 | 68 | 128 | 132 | 128 | 208 |
