R0436 - S321 - Einzelstiftschraube DIN6379
Datenblatt
Weitere Informationen
| Werkstoff | UNI 42 CrMo4 a norma ASTM A 193-B7 Classe 10.9. - Filetto ottenuto per rullatura |
| Norm | DIN 6379 |
| Verwendung | Prigioniere senza dado e rondella. |

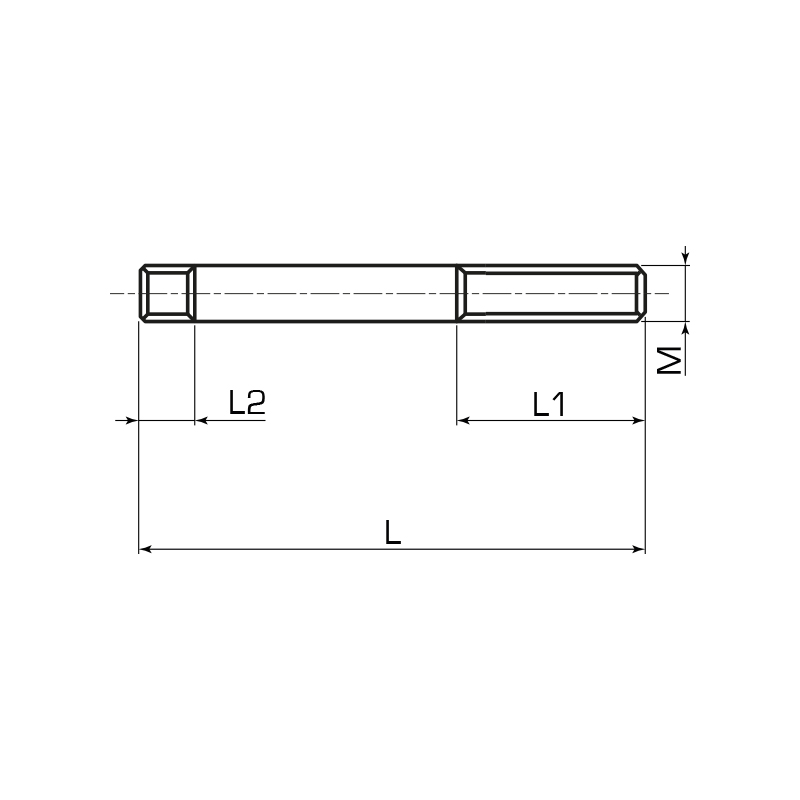

M
L
L1
L2
| Menge | Code | M | L | L1 | L2 | |
|---|---|---|---|---|---|---|
|
| R0436-11-0001 | M8 | 40 | 20 | 11 | |
|
| R0436-11-0002 | M8 | 63 | 40 | 11 | |
|
| R0436-11-0003 | M8 | 80 | 50 | 11 | |
|
| R0436-11-0004 | M8 | 100 | 63 | 11 | |
|
| R0436-11-0005 | M8 | 125 | 75 | 11 | |
|
| R0436-11-0006 | M8 | 160 | 100 | 11 | |
|
| R0436-11-0007 | M8 | 200 | 100 | 11 | |
|
| R0436-11-0008 | M10 | 50 | 25 | 13 | |
|
| R0436-11-0009 | M10 | 60 | 35 | 13 | |
|
| R0436-11-0010 | M10 | 80 | 50 | 13 | |
|
| R0436-11-0011 | M10 | 100 | 75 | 13 | |
|
| R0436-11-0013 | M10 | 160 | 100 | 13 | |
|
| R0436-11-0014 | M10 | 200 | 125 | 13 | |
|
| R0436-11-0015 | M12 | 50 | 25 | 15 | |
|
| R0436-11-0016 | M12 | 63 | 32 | 15 |
