R0227 - C5 - Konische Säule
Datenblatt
Weitere Informationen
| Werkstoff | 1.7131 |
| Behandlung | Cementazione + Tempra |
| Härte | 61-63 HRC |
| Verwendung | Colonna conica serie nazionale per accoppiamento con bussola conica codice B5 per guida stampo. |

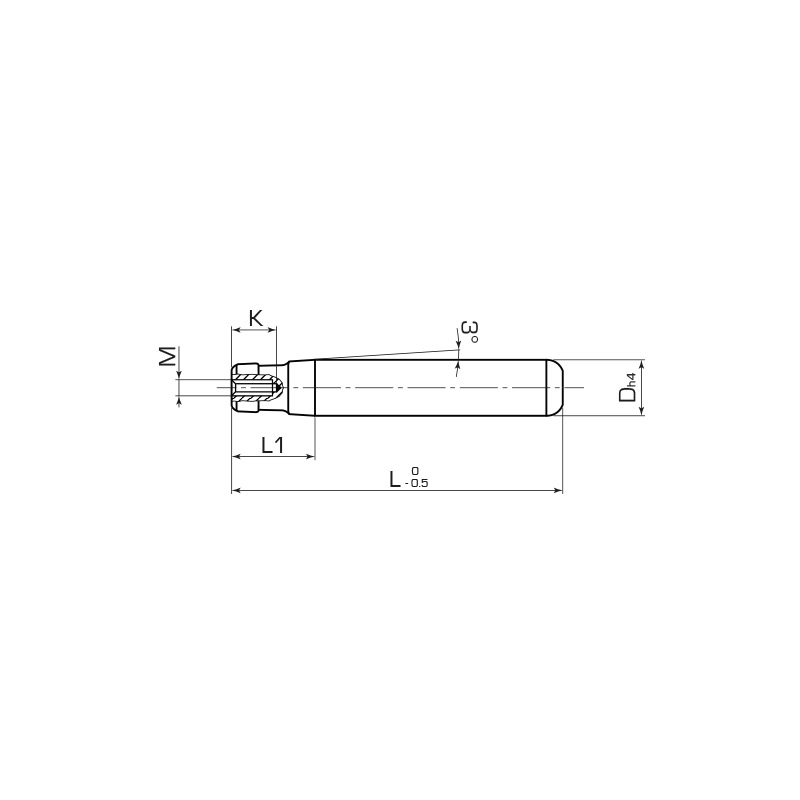

D
L
L1
K
M
| Menge | Code | D | L | L1 | K | M | |
|---|---|---|---|---|---|---|---|
|
| R0227-04-0001 | 24 | 115 | 48 | 20 | M8 | |
|
| R0227-04-0002 | 24 | 135 | 48 | 20 | M8 | |
|
| R0227-04-0003 | 24 | 155 | 48 | 20 | M8 | |
|
| R0227-04-0004 | 24 | 170 | 48 | 20 | M8 | |
|
| R0227-04-0005 | 24 | 185 | 48 | 20 | M8 | |
|
| R0227-04-0006 | 24 | 200 | 48 | 20 | M8 | |
|
| R0227-04-0007 | 25 | 115 | 48 | 20 | M8 | |
|
| R0227-04-0008 | 25 | 135 | 48 | 20 | M8 | |
|
| R0227-04-0009 | 25 | 155 | 48 | 20 | M8 | |
|
| R0227-04-0010 | 25 | 170 | 48 | 20 | M8 | |
|
| R0227-04-0011 | 25 | 185 | 48 | 20 | M8 | |
|
| R0227-04-0012 | 25 | 200 | 48 | 20 | M8 | |
|
| R0227-04-0013 | 30 | 135 | 57 | 20 | M8 | |
|
| R0227-04-0014 | 30 | 155 | 57 | 20 | M8 | |
|
| R0227-04-0015 | 30 | 170 | 57 | 20 | M8 |
