R0260 - R2061.44 - Kugelführungsbuchse ISO9448-3-DIN9831
Datenblatt
Weitere Informationen
| Werkstoff | 1.7131 |
| Behandlung | Cementazione + Tempra |
| Norm | ISO 9448-3 DIN 9831 |
| Verwendung | Bussola serie europea per accoppiamento con gabbia a sfera. Ideale per scorrimenti precisi e per stampi con cicli veloci. |

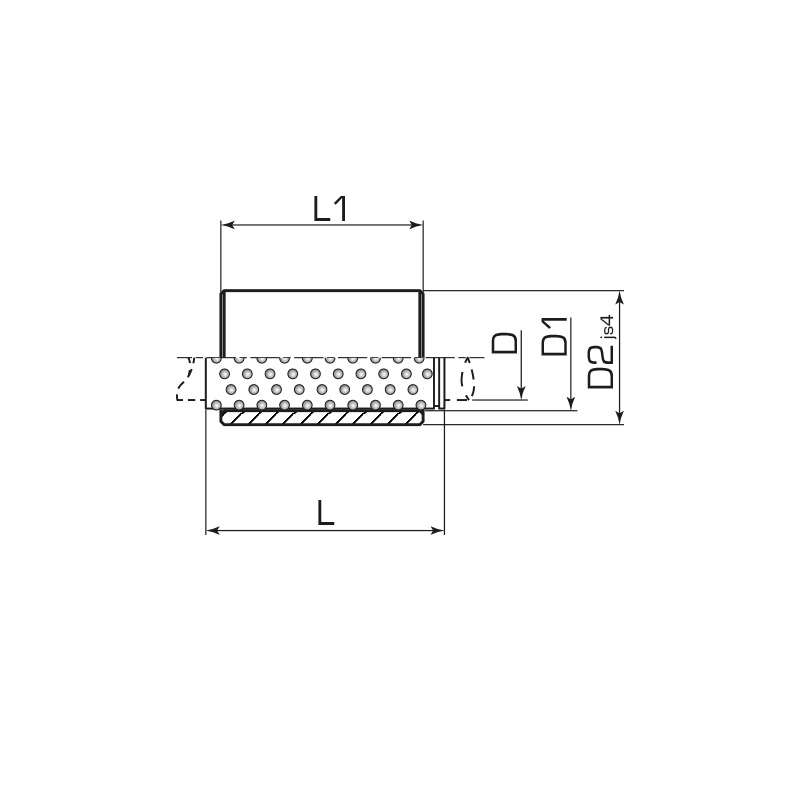

D
L
D1
D2
L1
| Menge | Code | D | L | D1 | D2 | L1 | |
|---|---|---|---|---|---|---|---|
|
| R0260-04-0001 | 16 | 45 | 22 | 28 | 23 | |
|
| R0260-04-0002 | 19 | 45 | 25 | 32 | 23 | |
|
| R0260-04-0003 | 19 | 45 | 25 | 32 | 30 | |
|
| R0260-04-0004 | 19 | 45 | 25 | 32 | 37 | |
|
| R0260-04-0005 | 19 | 56 | 25 | 32 | 47 | |
|
| R0260-04-0006 | 19 | 71 | 25 | 32 | 60 | |
|
| R0260-04-0007 | 19 | 95 | 25 | 32 | 77 | |
|
| R0260-04-0008 | 20 | 45 | 26 | 32 | 23 | |
|
| R0260-04-0009 | 20 | 45 | 26 | 32 | 30 | |
|
| R0260-04-0010 | 20 | 45 | 26 | 32 | 37 | |
|
| R0260-04-0011 | 20 | 56 | 26 | 32 | 47 | |
|
| R0260-04-0012 | 20 | 71 | 26 | 32 | 60 | |
|
| R0260-04-0013 | 20 | 95 | 26 | 32 | 77 | |
|
| R0260-04-0014 | 24 | 45 | 30 | 40 | 23 | |
|
| R0260-04-0015 | 24 | 45 | 30 | 40 | 30 |
